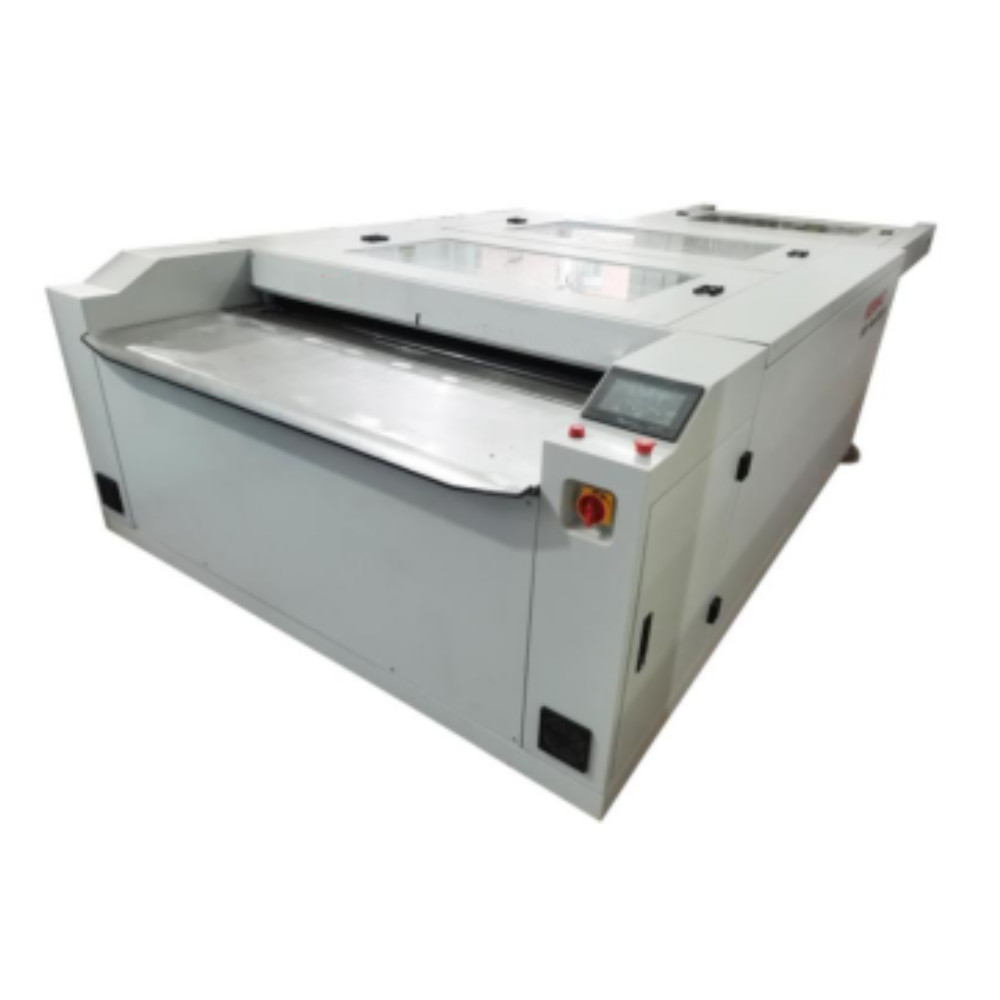

Name: 4AW4260 Wired HD Efficiency Solvent Saving Flexo Plate Washing Machine
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: 4AW4260
Price: 22000 USD
Availability: InStock

4AW4260 Wired HD Efficiency Solvent Saving Flexo Plate Washing Machine

Temel bilgi

Place of Origin:	China
Marka adı:	PRINTYOUNG
Sertifika:	CE
Model Number:	4AW4260

Minimum Order Quantity:	1 Set
Fiyat:	US 22000 Set
Packaging Details:	Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time:	45 days
Payment Terms:	L/C, T/T
Supply Ability:	30 Set/Sets per Month

Şimdi başvurun

Model No.:

4AW4260

Wash Working Wize:

1530 * 1070 mm

Machine Shape Size:

3900 * 1850 * 1230 mm

Mainframe Size:

2200 * 1850 * 1230 mm

Platform Size:

1700 * 1570 * 260 mm

Voltage:

220/380V (special voltage can be customized)

Power:

4.9 kw

Weight:

1300kgs

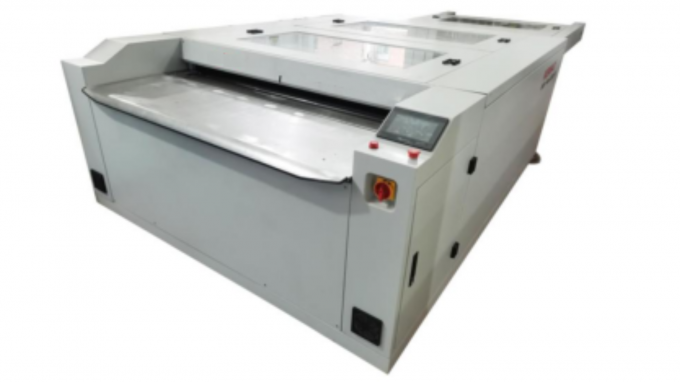

4AW4260 Wired Flexo Plate Washing Machine

Features

The fourth generation automatic high precision plate washing machine is the latest plate washing machine developed by Printyoung.Simple structure and complete functions, stable transmission,stable and durable,simple maintenance and convenient repair,washing plate efficiency,good quality and solvent saving.Plate washing platform with high strength aluminum alloy assembly structure,reduce welding deformation,to ensure the flatness of the platform.Solvent box bottom is made of 8K stainless steel plate,funnel design,avoid solvent residue in the water tank,can quickly return to storage solvent box sealed preservation,reduce solvent volatilization.Brush fixed wall board with high strength aluminum alloy,all CNC processing,to ensure the accuracy of each brush.Graphite copper bushing is used to ensure the precision and durability.Flat brush swing and round brush rotation driven by high-end servo stepper motor,flat brush swing speed and round brush rotation speed can be adjusted,suitable for all kinds of flexo high-precision cleaning.Flat brush adopts spring simple structure,easy to adjust brush height and replace brush.Round brush with steel coupling installation and connection,to ensure accuracy and brush replacement simple and quick.Configure concentration detection,set the solvent concentration automatically replace the old solvent.Reasonable exhaust design can minimize the emission of solvent odor to the workshop,to ensure fresh workshop air.

Technical Parameters

4AW Wired Flexo Plate Washing Machine
Model No.	4AW4260	4AW5280	4AW52100
Wash Working Size	1530 * 1070 mm	2030 * 1320 mm	2540 * 1320 mm
Machine Shape Size	3900 * 1850 * 1230 mm	4900 * 2100 * 1230 mm	5470 * 2100 * 1230 mm
Mainframe Size	2200 * 1850 * 1230 mm	2700 * 2100 * 1230 mm
Platform Size	1700 * 1570 * 260 mm	2200 * 1820 * 260 mm	2670 * 1820 * 260 mm
Voltage	220/380V (special voltage can be customized)
Power	4.9 kw	5.5 kw	5.6 kw
Weight	1300 kgs	1650 kgs	1700 kgs
