Name: PRY-8D Gathering and Book Saddle Stitching and Trimming Machine
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: PRY-8D
Price: 92000 USD
Availability: InStock

PRY-8D Gathering and Saddle Stitching and Trimming Machine

Features

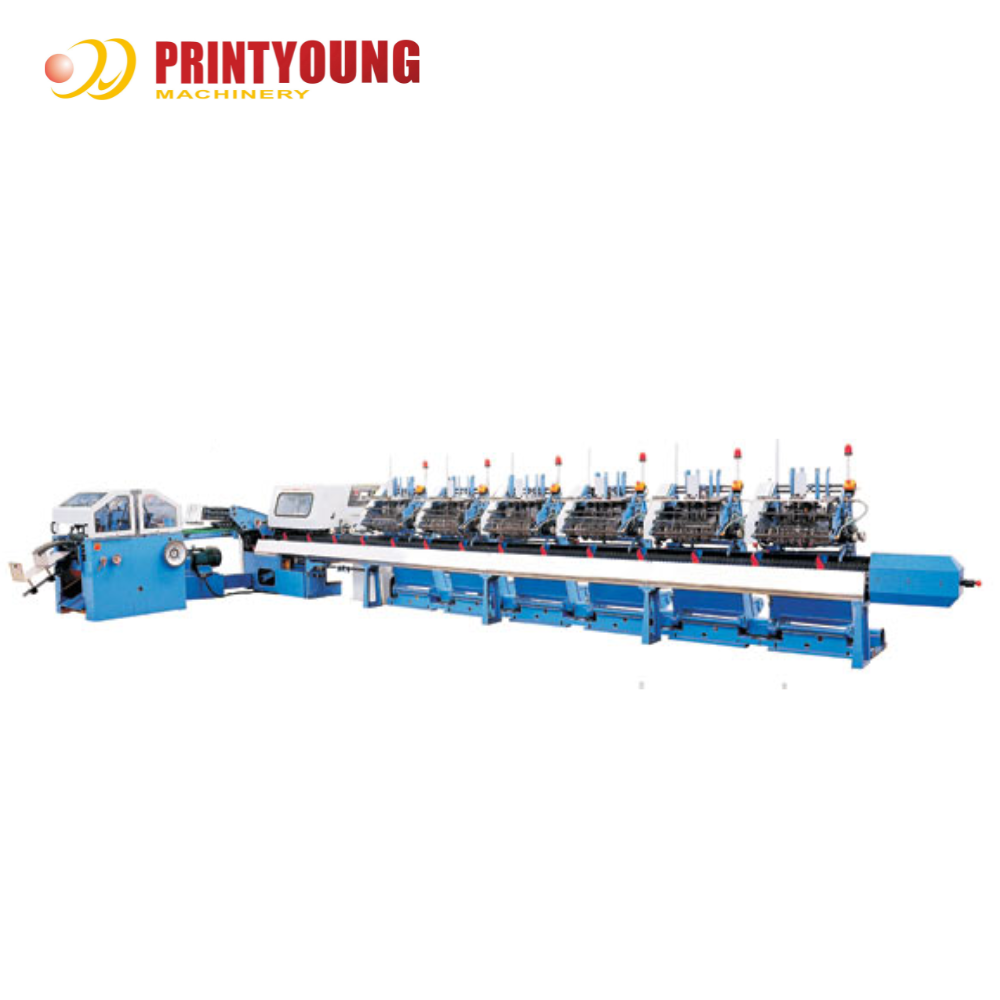

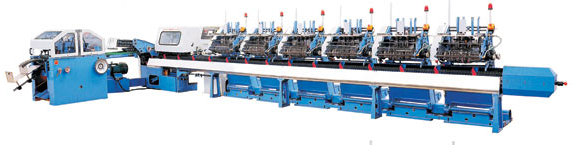

The PRY-8D saddle stitching line consists of a gathering machine,a saddle stitcher(with detection mechanism),a three-knife trimmer,a book collection cart,and an electrical control box.The saddle stitching line offers high speed,low cost,and reliable performance.The binding process is controlled by PLC and sensors,which detect and track defective books (missing or extra pages)and automatically sort them,ensuring a high level of automation.

Technical Parameters

Maximum Format	Before Cutting	450 * 311 mm
Maximum Format	After Cutting	440 * 300 mm
Minimum Format	Before Cutting	158 * 111 mm
Minimum Format	After Cutting	148 * 100 mm
Maximum Format of Double-Copy Book	After Cutting	217 * 300 mm
Minimum Format of Double-Copy Book	After Cutting	135 * 100 mm
Maximum Thickness of Bound Book Products		8 mm
Total Machine Power		18 kw
Maximum Mechanical Speed		10000 r/h

Configuration

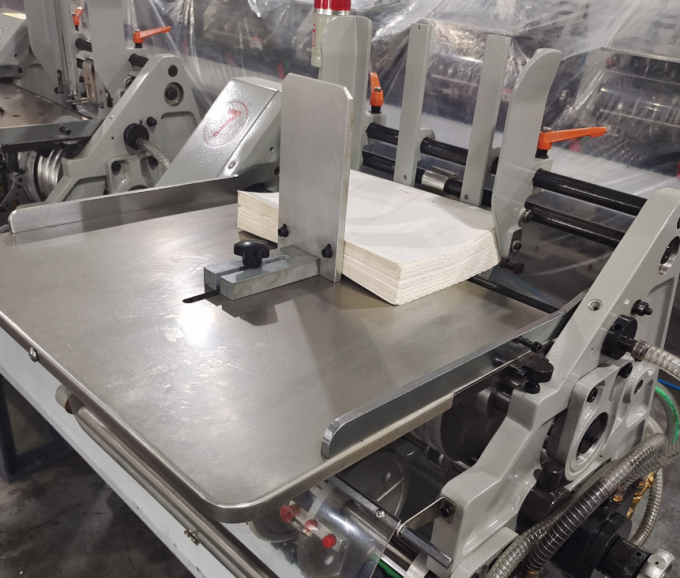

Gathering Machine

1.It has production mode selection switches for 1:1 and 1:2,as well as an empty position selection switch,which is convenient for adjustment.
2.It is equipped with safety and fault signal lights,start/stop buttons.
3.The gathering machine adopts a double gripper structure,which improves the stability of machine operation.
4.It uses multiple suction nozzles for paper feeding,ensuring the stability of booklets falling,and is suitable for booklets of different specifications.
5.A cam is used to control the air pressure and time,enabling each booklet to fall accurately
6.The gripper mechanism of the gathering machine has been improved.A groove cam torsion spring opening gripper device is adopted,making the gripper mechanism durable. Coupled with wear-resistant synthetic rubber pads,the conveying force of the gripper on the booklets is enhanced.

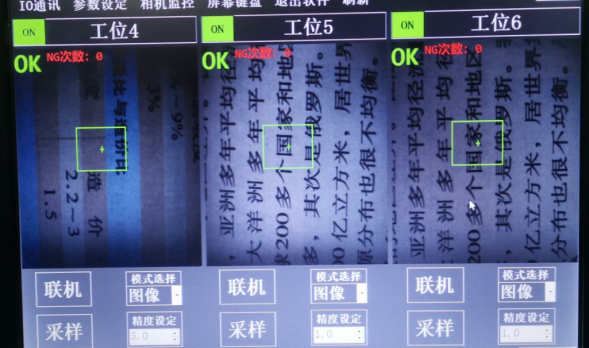

Graphic Detection System(optional configuration)

This system is designed to compare printed text on paper to determine if book placement is incorrect, triggering an audible and visual alarm and stopping the gathering machine or ejecting the defective book.
System Features:
1.Automatically starts when the device is powered on,automatically setting the correct text template without manual operation.
2.Accurately creates templates for book pages with different colors and no printed text, adjusting recognition accuracy based on paper color differences to maximize accuracy.

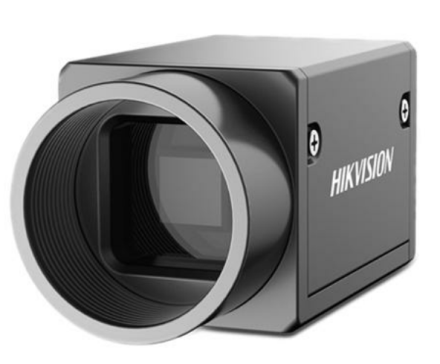

3.High-speed industrial-grade camera for clearer images and faster capture.
4.Integrated image recognition system with a dust-proof industrial host,compact size,easy installation,and equipped with an Intel Core i3 7th Gen processor,6 Gigabit Ethernet ports, and 24-hour zero-fault operation.
5.Multiple control modes:stop mode,auto-reset mode,and eject mode to meet different equipment requirements.
6.Touchscreen Chinese interface,easy to understand.

Folding and Gathering Machine

1.Base is integrally cast for increased stability.
2.New gripper system with easy adjustment for stable paper drop.
3.Equipped with start/stop buttons and a unified air valve adjustment function for easy operation.
4.Features missing or extra page detection.
Binding Range:
-Maximum size:610×440mm
-Minimum size:220×155mm
-Maximum mechanical speed:10,000 r/h
-Common paper weight:120-220 g/m²

Stitcher

1.Comes standard with two German Hohner 45/6 stitching heads.
2.Can be equipped with 2 to 4 Hohner M45/6 stitching heads.
3.Sensitive detection function to eject defective products with missing or extra pages or blockages.
4.Ensures stable and reliable binding quality.

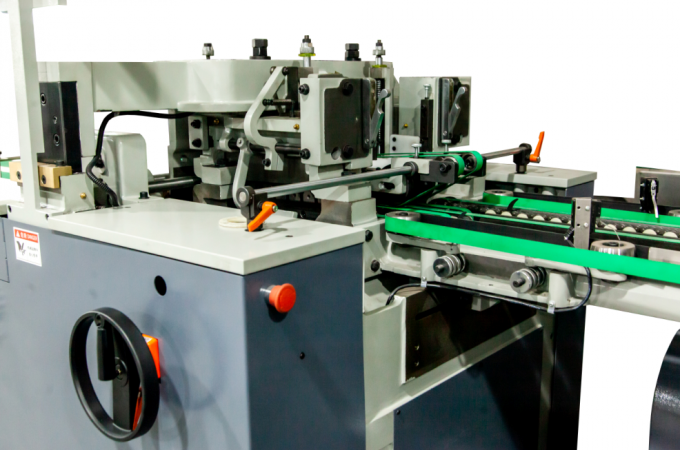

Three-Knife Trimmer

1.Box body is integrally cast.
2.Handwheel with scale for adjusting book size.
3.Paper jam stop function.
4.High-quality cutting blades ensure cutting quality.
5.Centralized oil supply system.

Book Collection Table

Comes standard with a straight-line book collection table with counting and book separation functions.The number of books per stack can be set as needed for easy collection.An optional stacker can replace the straight-line book collection table.

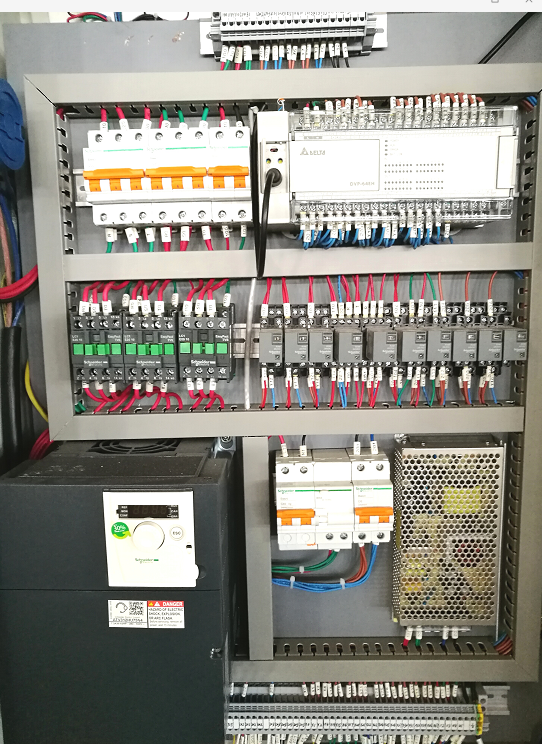

Electrical Control System

1.Centralized control system with touchscreen.
2.Main motor frequency conversion adjustment and PLC control system.
3.French Schneider frequency converter.
4.Japanese OMRON limit switches and American Banner sensors.
5.Stop buffer function.
6.Displays speed,total output,and total running time.
7.Pre-set function for book separation quantity.
8.Stable and reliable electrical program.
