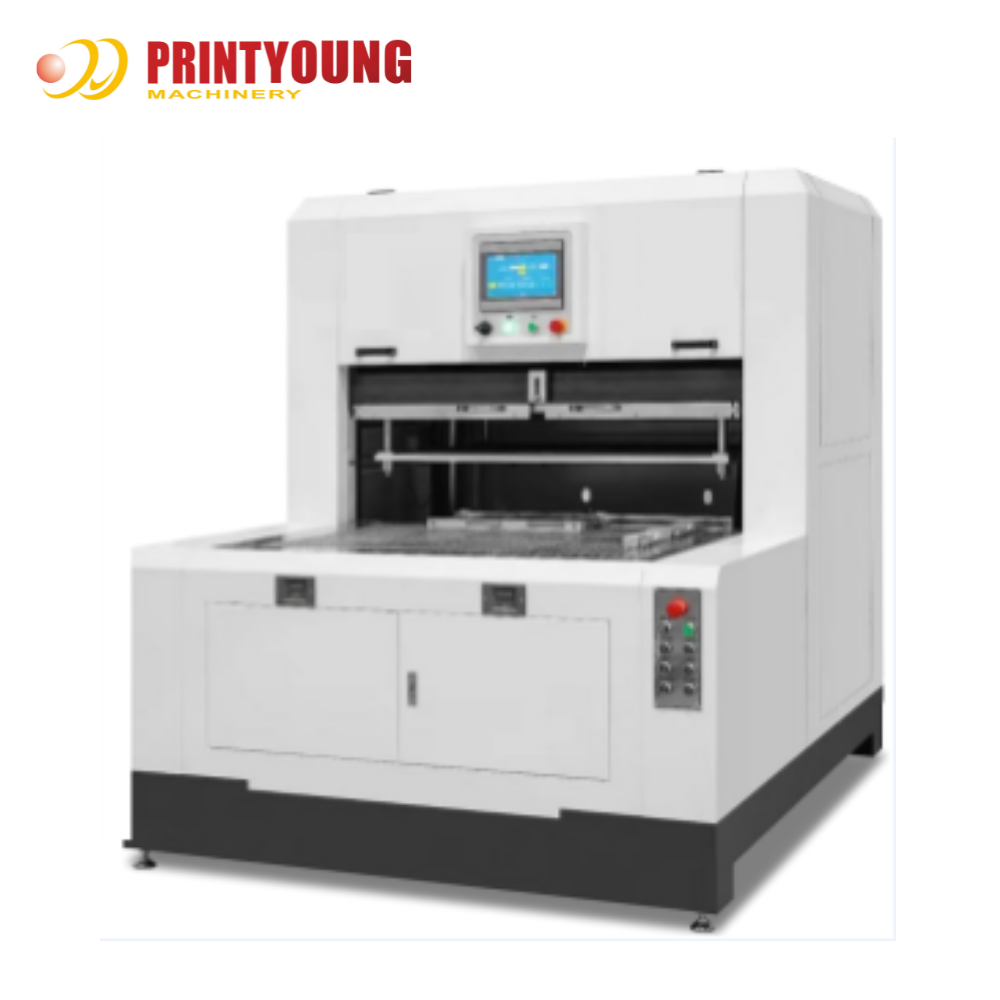

Name: PRY-1080 Automatic Paper Board Stripping and Blanking Machine
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: Pry-1080
Price: 19000 USD
Availability: InStock

PRY-1080 Automatic Paper Board Stripping and Blanking Machine

Temel bilgi

Menşe yeri:	ÇİN
Marka adı:	PRINTYOUNG
Sertifika:	CE
Model numarası:	Pry-1080

Min sipariş miktarı:	1 set
Fiyat:	US 19000 Set
Ambalaj bilgileri:	Uzun mesafeli karayolu taşımacılığı ve çeşitli hava koşulları için uygun olan neme dayanıklı ve şok
Teslim süresi:	30 gün
Ödeme koşulları:	L/C, T/T
Yetenek temini:	Ayda 30 set/set

Şimdi başvurun

<i>Max.</i> <b>Maks.</b> <i>Paper Size</i> <b>Kağıt boyutu</b>:	1080*780mm	<i>Min.</i> <b>dak.</b> <i>Paper Size</i> <b>Kağıt boyutu</b>:	400 * 200 mm
Maksimum Boşluk Boyutu:	1030 * 730 mm	Min. Boşluk Boyutu:	40 * 40 mm
Sıyırma Yüksekliği:	40 ~ 120 mm	Ağırlık:	3,5 ton
Gerilim:	380 V	Güç:	8 KW

PRY-1080 Stripping and Blanking Machine

Features

* Large torque,fast starting,fast braking,fast reversing,precise pressure stroke control,and can work stably in harsh environments of high and low temperatures.It is safer and more stable than ordinary hydraulic systems.

* Compared with ordinary hydraulic systems,it saves 70% energy.

* It is 1/10 of the noise of ordinary hydraulic systems.

* It can continuously maintain pressure with infinite speed regulation,and the oil temperature is 1/3 of that of ordinary hydraulic stations,which prolongs the service life of the hydraulic system and is simple to maintain.

* High-density honeycomb panels can be equipped with φ 5/3 φ stripping pin to achieve full page stripping.The upper and lower honeycomb panels are engraved with scales for fast and accurate alignment.

Technical Parameters

Model	PRY-1080
Max. Paper Size	1080 * 780 mm
Min. Paper Size	400 * 200 mm
Max. Blanking Size	1030 * 730 mm
Min. Blanking Size	40 * 40 mm
Stripping Height	40 ~ 120 mm
Weight	3.5 t
Voltage	380 V
Power	8 kw
Blanking Speed	1 ~ 2 times/min
Net Weight	3500 kg
Machine Size	2000 * 1700 * 1950 mm
Machine Packing Dimension	2180 * 1870 * 2240 mm
