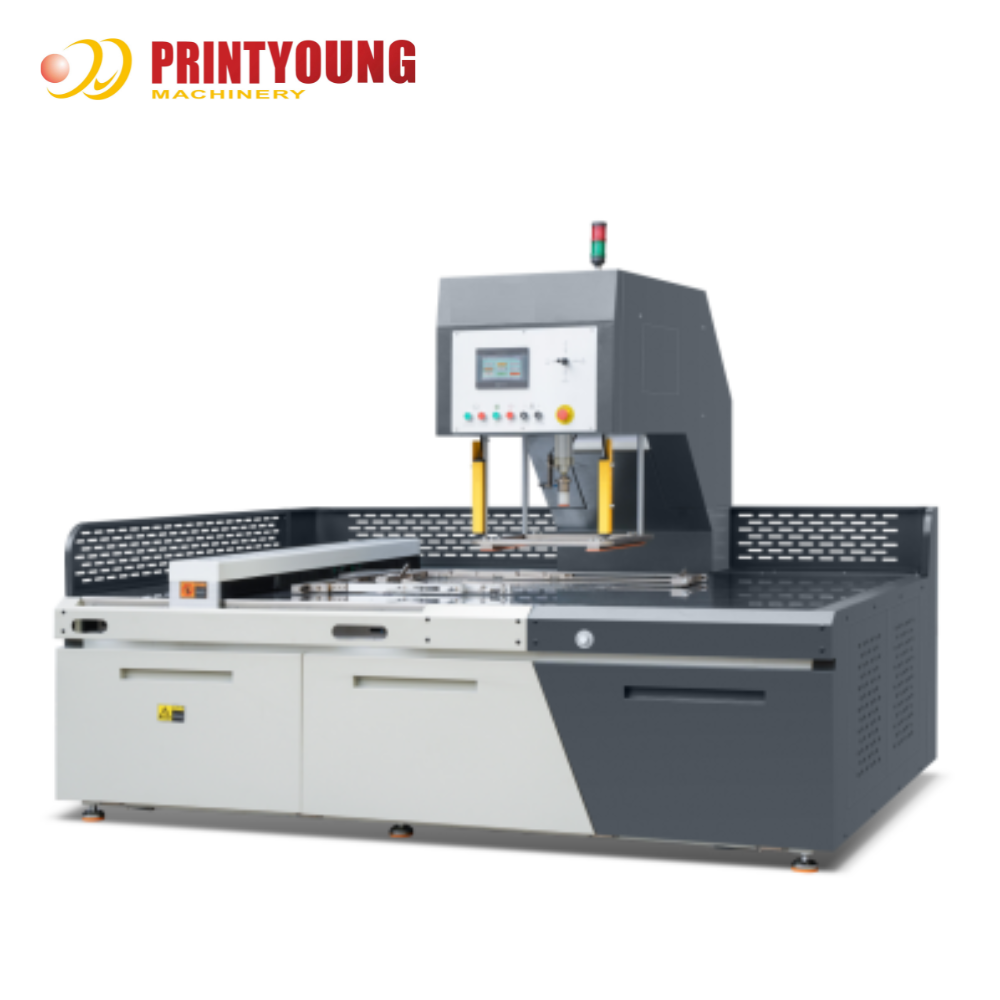

PRY-1080S Automatic Paper Waste Stripping Machines with Single Head

PRY-1080S Automatic Paper Waste Stripping Machines with Single Head
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head
Temel bilgi
Menşe yeri: Çin
Marka adı: PRINTYOUNG
Sertifika: CE
Model numarası: PRY-1080S
Min sipariş miktarı: 1 takım
Fiyat: USD 15000 Set
Ambalaj bilgileri: Uzun mesafeli karayolu taşımacılığı ve çeşitli hava koşulları için uygun olan neme dayanıklı ve şok
Teslim süresi: 30 gün
Ödeme koşulları: L/C, T/T
Yetenek temini: Ayda 30 Set
Şimdi başvurun
Makine zemin alanı: 2760*2050*1950mm Maks. Sayfa Boyutu: 1080*780mm
Min sayfa boyutu: 650*450mm Maks. Kazık Yüksekliği: 100 mm
Min. Kazık Yüksekliği: 40mm Maksimum Boşluk Boyutu: 450*450mm
Min. Boşluk Boyutu: 30*30mm Maks. Hız: 20 döngü/dakika
Basınç: 8 Bar Toplam Güç: 4,5 kw
Net ağırlığı: 2300 kg Brüt ağırlık: 2600 KG

PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 0
PRY-1080S Paper Stripping Machine with Single Head
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 1
Features
1.Fully Automatic;
2.Single head blanking system for running sheets with nested blanks;
3.Heavy-duty,quality-built single support base;
4.Equipped with high-precision linear bearing rails and servo motors for smooth and precise movement;
5.Operator-friendly touch screen for quick and simple programing;
6.Can be customized according to customers’ job demand;
7.Adopts servo motor,double guide rail and ball screw ensure accuracy;
8.Automatic lubrication system with timely maintenance extends the service life of the machine;
9.Hydraulic system with inserted motor and oil temperature cooling fan(power 3.75kw) ensures constant and big working pressure;
10.The complete machine takes much less space and is equipped with PLC,touch screen interface in operation;
11.Used to replace manual labor,improving product quality and enterprise profit.
Technical Parameters
Model
PRY-1080S (single work unit)
Machine Floor Area
2760 * 2050 * 1950 mm
Max. Sheet Size
1080 * 780 mm
Min. Sheet Size
650 * 450 mm
Max. Pile Height
100 mm
Min. Pile Height
40 mm
Max. Blanking Size
450 * 450 mm
Min. Blanking Size
30 * 30 mm
Max. Speed
20 cycles/minute
Pressure
8 bar
Total Power
4.5 kw
Net Weight
2300 kgs
Gross Weight
2600 kgs
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 2
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 3
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 4
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 5
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 6
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 7
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 8
