Name: PRY-10 Automatic 30m Speed Paper Straw Making Machine
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: PRY-10
Price: 20000 USD
Availability: InStock

PRY-10 Automatic 30m Speed Paper Straw Making Machine

Temel bilgi

Menşe yeri:	Çin
Marka adı:	PRINTYOUNG
Sertifika:	CE
Model numarası:	PRY-10

Min sipariş miktarı:	1 TAKIM
Fiyat:	USD 20000 Set
Ambalaj bilgileri:	Uzun mesafeli karayolu taşımacılığı ve çeşitli hava koşulları için uygun olan neme dayanıklı ve şok
Teslim süresi:	35 gün
Ödeme koşulları:	L/C, T/T
Yetenek temini:	Ayda 30 Set

Şimdi başvurun

Kağıt Katmanı:	3 ~ 4 katman	Maks. Çap:	10 mm
Min. Çap:	5 mm	<i>Max.</i> <b>Maks.</b> <i>Thickness</i> <b>Kalınlık</b>:	1 mm
<i>Min.</i> <b>dak.</b> <i>thickness</i> <b>kalınlık</b>:	0,2 mm	Min. Uzunluk:	35 ~ 45mm
Çıkış Hızı:	3 ~ 30 m/dak	Sarıcı Kafa:	2 kafa / 1 adet kemer
Kesme yöntemi:	10 bıçak, pnömatik sürüş	Tutkal yöntemi:	tek ve çift yüz
Sabit Uzunluk Modu:	kodlayıcı	Operatör:	1 Kişi
Şaft Sabitleme Modu:	Chuck	Hız Kontrolü:	servo izleme
Sarma Silindiri Çapı:	195 mm	Sarma Silindiri Yüksekliği:	100 mm
<i>Max.</i> <b>Maks.</b> <i>Rotation Speed</i> <b>Dönme hızı</b>:	200 dev/dak	Ağırlık:	1350 kg

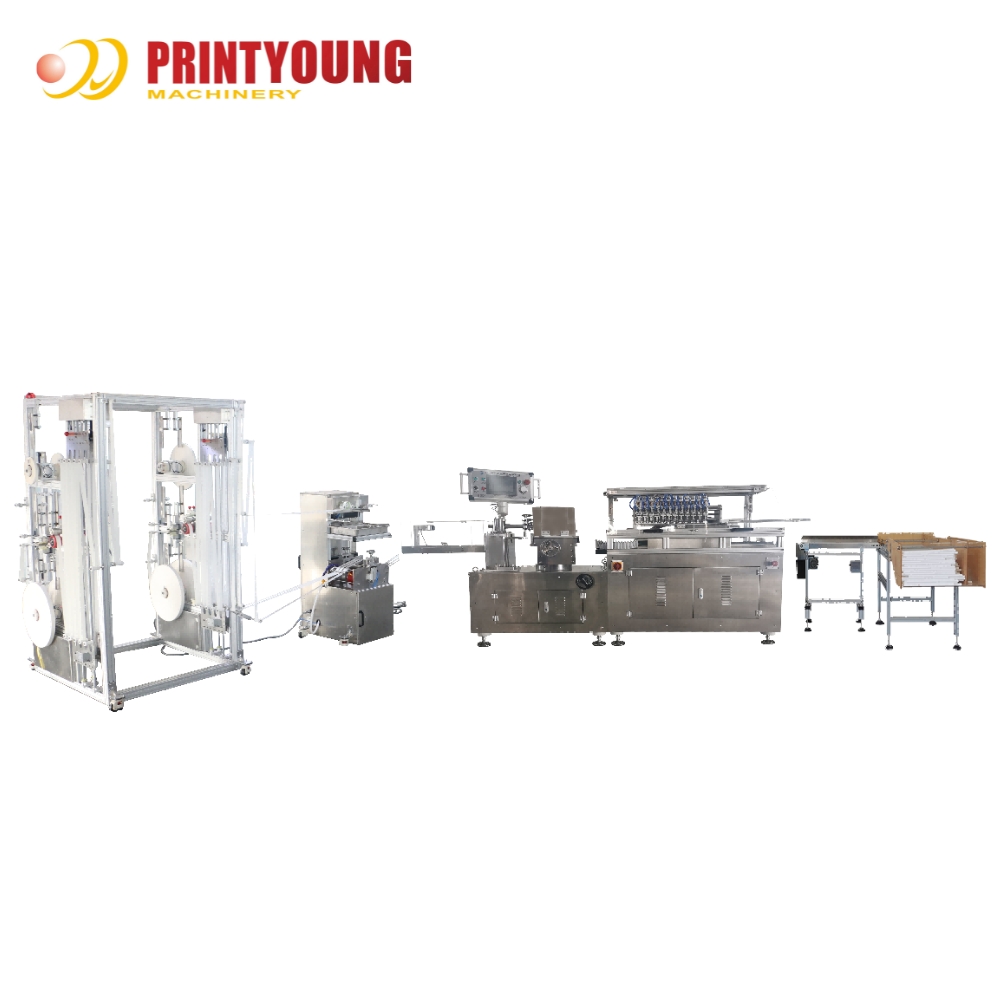

PRY-10 Automatic Paper Straw Machine

Features

Winding/spiraling different layers paper strip into paper tube with glue.
Multi-cutting knife system,by servo tracking,cut paper tube into small piece of paper drinking straws.
Material:sand-tube paper/corrugated paper/kraft paper/industrial glue
Sub-raw material:may need oil for lubrication and cooling.White mineral oil.
Capacity:
How many pieces straw per minute.

For example: 30m/min, making 8 * 60 mm straws. 30*1000/60=500 pcs/minute.

Technical Parameters

Paper Layer	3 ~ 4 layers
Max. Diameter	10 mm
Min. Diameter	5 mm
Max. Thickness	1 mm
Min. Thickness	0.2 mm
Min. Length	35 ~ 45 mm
Output Speed	3 ~ 30 m/min
Winder Head	2 heads / 1pc belt
Cutting Method	10 knifes , pneumatic driving
Glue Method	single & double face
Fixed Length Mode	Encoder
Operator	1 person
Shaft Fixing Mode	chuck
Speed Control	servo tracking
Input Power	3P / 380V / 50Hz
Main Part Dimension	2250 * 640 * 1600 mm
Land Area Dimension	7000 * 2500 * 1900 mm
Winding Roller Diameter	195 mm
Winding Roller Height	100 mm
Weight	1350 kgs
Main Power	2 kw
Max. Rotation Speed	200 r/min
Torque Output	68 N.m
Hub Drive	2

Configuration

Glue Station

1.Aluminum and stainless steel frame;
2.Stainless steel glue pot;
3.Glue recycle system;
4.Lubrication oil roller for inner paper strip;
5.One pair roller(rubber roller and steel roller)for filming glue on paper;
6.1 motor to drive glue roller;
7.Easy to adjust glue quantity by adjust the distance of two roller.

Paper Roll Hanging Bracket with Connecting Function

1.Help paper straw making machine no stop working.
2.Use auto detection:when the paper roll is going to use out,the mechanism will cut the tail ends of old paper roll and connect new paper roll automatically.
3.Smaller dimension,easy delivery and moving to adjust paper feeding angle.
4.Construction simpleness.If paper break,no need to stop to route the paper up and down complicated.
5.Constant unwinding force for the paper rolls,to let paper feeding more smoothly.
6.Our own patent for this connecting mechanism,not copy from others,especially European brands,so no patent problem.
7.Optional choose:4 layers connecting mechanism.
