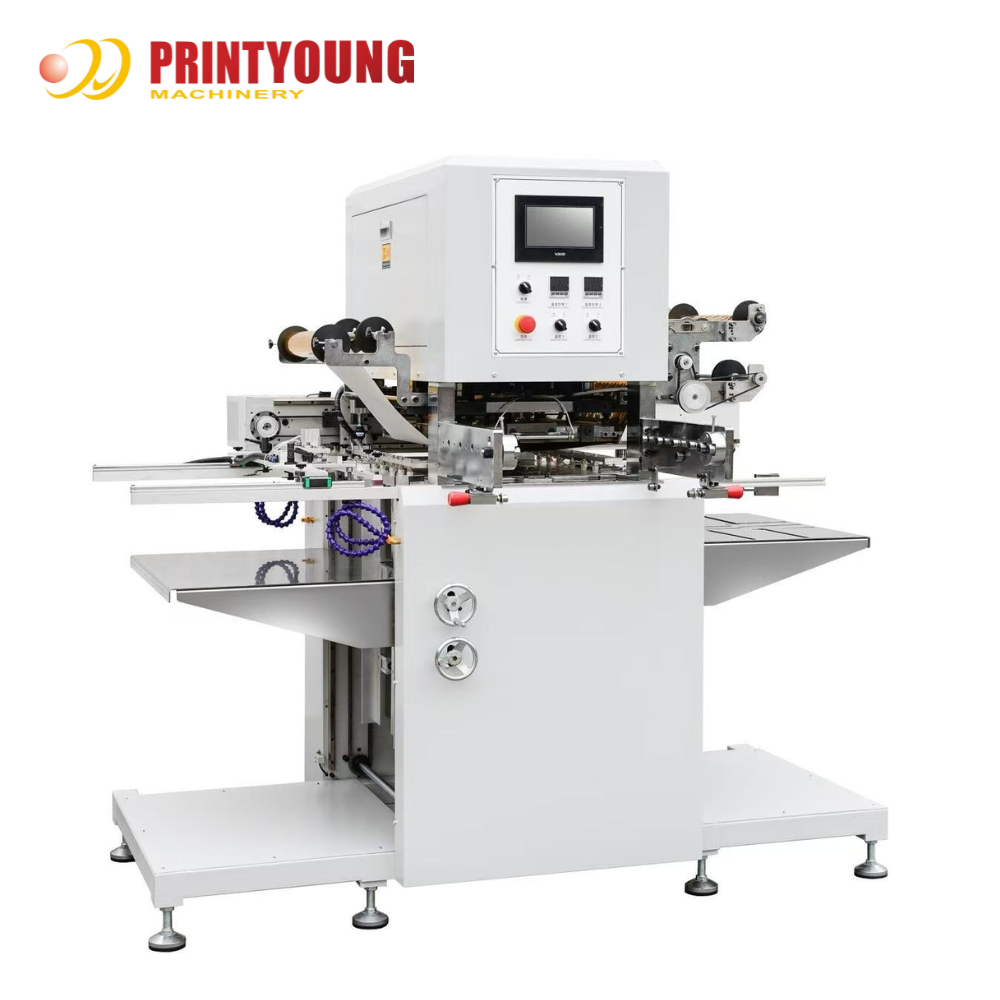

Name: PRY-62 Servo Automatic Electric Heat Press Machine 220V New
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: PRY-62
Price: 11500 USD
Availability: InStock

PRY-62 Hot Foil Stamping Machine

Features

PRY-62 model features comprehensive hardware configurations adaptable to diverse foil stamping requirements.

(1) The entire machine utilizes Q235 carbon steel.The body wall panels undergo special processing for high strength,permanent dimensional stability,and structural safety. (2) Equipped with imported Taiwanese ball screws to ensure precise movement.The main servo includes overload protection,and the timing belt features fracture protection. Automatically halts upon external impact to minimize damage to the body/feeding accuracy and prevent malfunctions.

(3) Main unit employs imported genuine bearings.

(4) Critical components integrate imported electrical parts(e.g., Omron [Japan],Schneider [France]).

(5) Foil stamping accuracy:±0.1mm;Maximum speed:1,800 sheets/hour.

(6) Features printyoung’s automatic pressure adjustment system for swift and precise stamping pressure control.

(7) Chinese-English touchscreen control interface.

(8) Taiwan,Chinese Air TAC pneumatic components ensure accuracy in every pneumatic motion.

(9) Main PLC utilizes Printyoung Electric for stable machine smooth operation.

Technical Parameters

Max. Feeding Paper Size	600 * 500 mm
Min. Feeding Paper Size	200 * 150 mm
Max. Foil Stamping Size	500 * 400 mm
Paper Specifications	128 ~ 3000 g/m²(cardboard),3.0mm thick grey board
Foil Stamping Precision	≤ ± 0.1 mm
Max. Working Pressure	20 T
Max. Working Speed	1800 s/h
Max. Feed Pile Height	600 mm
Max. Foil Length	240 m (length wise)
Main Motor Power	3 kw
Overall Dimensions	1800 * 1550 * 1800 mm
Machine Weight	1000 kg
Full Load Power	7 kw

Configuration

Paper Feeding Section

1.Utilizes an advanced control system to regulate the paper feeding speed,ensuring smooth paper transportation.
2.The paper separation part is made of special aluminum alloy for smoother paper feeding.

3.Single-sheet feeding,ensuring stability and accuracy.
4.Servo micro-adjustment technology for the suction paper row,allowing adjustments without stopping the machine.

Electrical Unit

1.The human-machine interactive touch interface allows configuration of different long and short pulls.

2.An alarm is triggered if the foil length is less than 6 cm.

3.The computer-controlled foil monitoring system displays the remaining and consumed foil length.

4.Equipped with Schneider electric components (France) and Printyoung PLC control system to ensure stable machine operation.

5.Uses photoelectric components from Japan's Omron and Germany's SICK.

Hot Stamping Section

1.The hot stamping plate uses 7075 high-grade aviation aluminum alloy and surface undergoes hard anodizing treatment,ensuring lightweight operation while maintaining high surface hardness and resistance to deformation.
2.Longitudinal Foil Feeding System:Reduces foil consumption and saves foil replacement time.
3.Dual Longitudinal Foil Feeding Mechanism:Equipped with Hangzhou Zhishan servo motors (China) and Printyoung PLC control system for user-friendly operation.The mechanism is positioned behind the longitudinal foil feeding to ensure smooth and flat foil collection after stamping.
4.Independent Manual Control:The main unit can be operated manually when needed.
5.Parallel Pressure Adjustment Device:Features a flat upper platform for precise pressure regulation.
6.Vacuum negative pressure detection ensures machine operation ceases upon absence of paper.
7.L-Shaped Right-Angle Push Gauge:Accommodates different printing registration requirements for accurate alignment.

Paper Receiving Section

1.Automatic paper aligning device.

2.Photoelectric device ensures neat paper collection.

3.Automatic lifting and lowering control system for the paper receiving table

Applications

Etiket:

Menşe yeri:	Çin
Marka adı:	PRINTYOUNG
Sertifika:	CE
Model numarası:	PRY-62

Min sipariş miktarı:	1 TAKIM
Fiyat:	USD 11500 Set
Ambalaj bilgileri:	Uzun mesafeli karayolu taşımacılığı ve çeşitli hava koşulları için uygun olan neme dayanıklı ve şok
Teslim süresi:	20 gün
Ödeme koşulları:	L/C, T/T
Yetenek temini:	Ayda 30 Set

Maks. Kağıt Boyutunu Besleme:	600 * 500 mm	Min. Kağıt Boyutunu Besleme:	200 * 150 mm
Maks. Folyo Damgalama Boyutu:	500*400 mm	Folyo Damgalama Hassasiyeti:	≤ ± 0,1 mm
Maks. çalışma baskısı:	20 T	Maks. çalışma hızı:	1800 saat/saat
Maks. Yem Yığını Yüksekliği:	600 mm	Maks. Folyo Uzunluğu:	240 m (uzunluk açısından)
