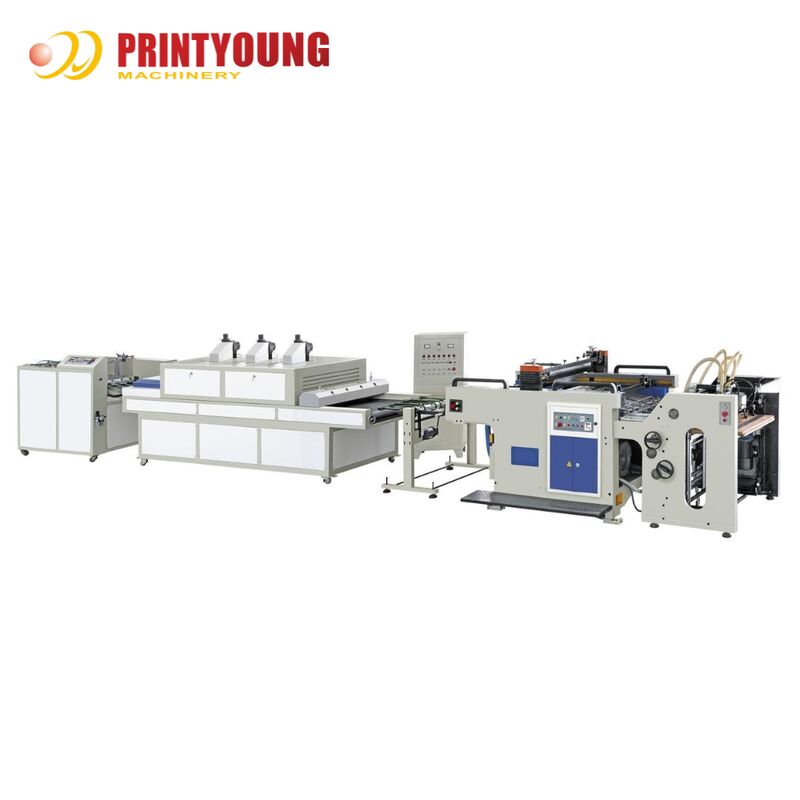

FB-780 Full Automatic High-Speed Programmable Silk Screen Printing Machine with UV Dryer and Stacker for Label & Bill Printer

FB-780 Full Automatic High-Speed Programmable Silk Screen Printing Machine with UV Dryer and Stacker for Label & Bill Printer
FB-780 Full Automatic High-Speed Programmable Silk Screen Printing Machine with UV Dryer and Stacker for Label & Bill Printer
Temel bilgi
Menşe yeri: Çin
Marka adı: PRINTYOUNG
Sertifika: CE
Model numarası: FB-780
Min sipariş miktarı: 1 takım
Fiyat: USD 39500 Set
Ambalaj bilgileri: Uzun mesafe karayolu taşımacılığına ve çeşitli hava koşullarına uygun, neme ve darbeye dayanıklı amb
Teslim süresi: 40 gün
Ödeme koşulları: L/C, T/T
Yetenek temini: Ayda 30 takım
Şimdi başvurun
Maks. Kağıt Boyutu: 780*540mm Min. Kağıt Boyutu: 350*270 mm
Sınır: <15 mm Kağıt Kalınlığı: 100 ~ 350 gr/m²
Ekran çerçevesi boyutu: 940*940mm Maks. Baskı Hızı: 1000 ~ 3600 sn/saat

FB-780 Full Automatic High-Speed Programmable Silk Screen Printing Machine with UV Dryer and Stacker for Label & Bill Printer 0
FB-780 Automatic Swing Silk Screen Printing Machine
FB-780 Full Automatic High-Speed Programmable Silk Screen Printing Machine with UV Dryer and Stacker for Label & Bill Printer 1
Features
Auto swing silk screen cylinder screen printing machine series is well-recognized.Auto flat screen press with high speed and high precision,ranking top in China suppliers.It is advantageous for well designed structure with single piece or streamline paper feeding equipment.Frequency variance control motor and whole-process auto close-monitoring device are equipped.It can be controlled by PLC program panel or centralized controller.
Only one person is necessary for operation,which greatly saves labor and boosts production.This machine can be used in printing soft and semi-soft material featured of 100-350g/m²,especially with UV ink for colors such as golden and silvery of ceramics sticker,package,label and cards and etc,its vivid colors,stereoscopic effect and strong covering achieves a superior position over other print presses.
FB-780 Full Automatic High-Speed Programmable Silk Screen Printing Machine with UV Dryer and Stacker for Label & Bill Printer 2
Technical Parameters
Screen Printing Machine
Model
FB-780
Min. Paper Size
350 * 270 mm
Max. Paper Size
780 * 540 mm
Border
< 15 mm
Paper Thickness
100 ~ 350 g/m²
Screen Frame Size
940 * 940 mm
Max. Printing Speed
1000 ~ 3600 s/h
Net/Gross Weight
3500kg / 3600kg
Power
3P 4N 50/60Hz 380V 8.20kw
Dimension
3050 * 1470 * 1280 mm
Package Size
2200 * 1900 * 1600 mm , 1750 * 1950 * 1600 mm
UV Dryer
Model
FB-UV1100-3500
Width of Belt
820 mm
Power of UV Lamp
5.6kw * 3pcs
Feeding Speed
1 ~ 30 m/min
Total Power
18 kw
Net/Gross Weight
700kg / 750kg
Overall Dimension
3500 * 1100 * 1600 mm
Package Size
3760 * 1280 * 1750 mm
Automatic Stacker
Model
FB-780DM
Max. Paper Size
800 * 600 mm
Min. Paper Size
350 * 270 mm
Max. Speed
3300 p/h
Power
3P 380V 60Hz
Net/Gross Weight
550kg / 600kg
Overall Dimension
1700 * 1250 * 1000 mm
Package Size
1950 * 1900 * 1550 mm
FB-780 Full Automatic High-Speed Programmable Silk Screen Printing Machine with UV Dryer and Stacker for Label & Bill Printer 3
FB-780 Full Automatic High-Speed Programmable Silk Screen Printing Machine with UV Dryer and Stacker for Label & Bill Printer 4
FB-780 Full Automatic High-Speed Programmable Silk Screen Printing Machine with UV Dryer and Stacker for Label & Bill Printer 5
FB-780 Full Automatic High-Speed Programmable Silk Screen Printing Machine with UV Dryer and Stacker for Label & Bill Printer 6
FB-780 Full Automatic High-Speed Programmable Silk Screen Printing Machine with UV Dryer and Stacker for Label & Bill Printer 7
FB-780 Full Automatic High-Speed Programmable Silk Screen Printing Machine with UV Dryer and Stacker for Label & Bill Printer 8
FB-780 Full Automatic High-Speed Programmable Silk Screen Printing Machine with UV Dryer and Stacker for Label & Bill Printer 9
