Ana sayfa ÜrünlerOtomatik Kağıt Kesme MakinesiH5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine

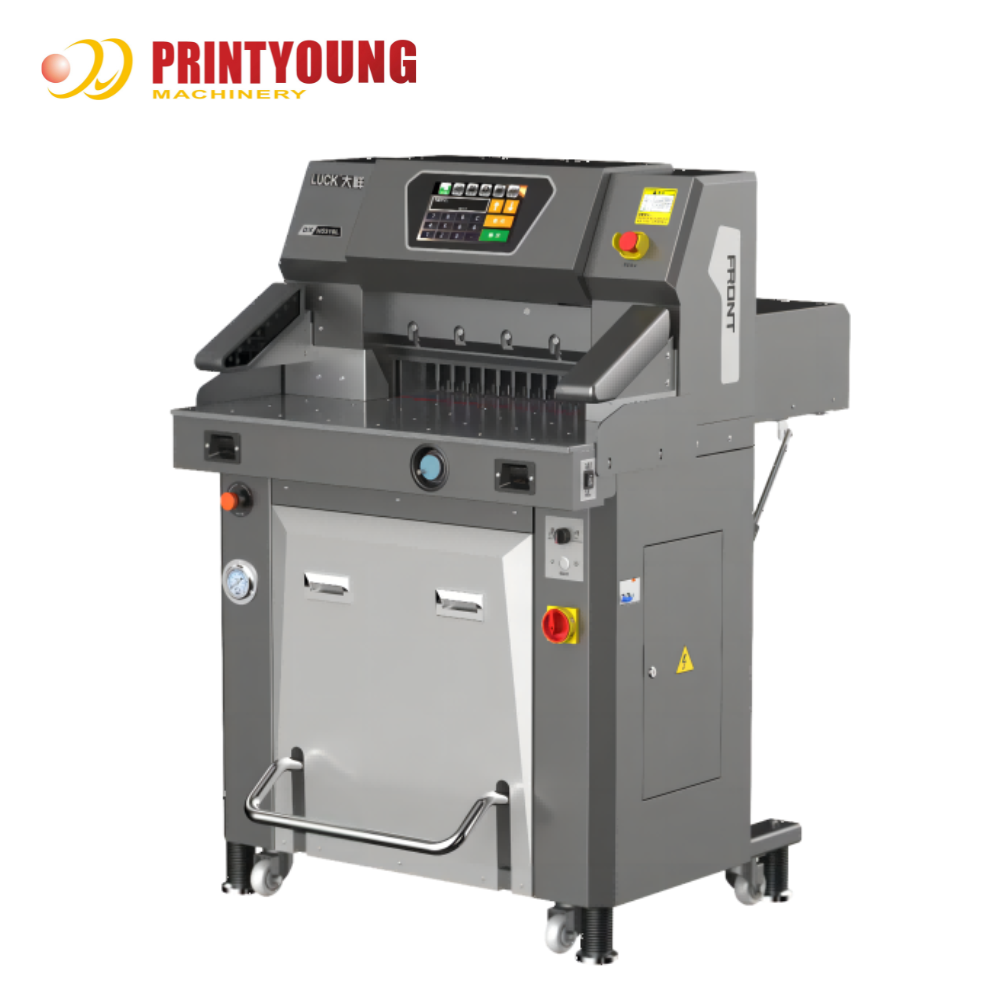

H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine

H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine
Temel bilgi
Menşe yeri: Çin
Marka adı: PRINTYOUNG
Sertifika: CE
Model numarası: H5310L, H6810L
Min sipariş miktarı: 1 takım
Fiyat: USD 2800 ~ 3600 Set
Teslim süresi: 30 İŞ GÜNÜ
Ödeme koşulları: L/C, T/T
Yetenek temini: Ayda 30 takım
Şimdi başvurun
Modeli: H5310L, H6810L Maks. kesme boyutu: 530*530 mm, 680*680 mm
<i>Max.</i> <b>Maks.</b> <i>Cutting Thickness</i> <b>Kesme Kalınlığı</b>: 100 mm <i>Min.</i> <b>dak.</b> <i>Cutting Size</i> <b>Kesim Boyutu</b>: 30mm
Kesme Hassasiyeti: ± 0.2 mm Basın Yolu: Hidrolik + Pedal
Kesme yolu: Hidrolik Görüntülemek: 10,2&quot; Dokunmatik ekran
programı: 100 Grup * 96 Kesim İtme Motoru: Adım motoru
Makine boyutu: 1440*960*1195 mm, 1440*1100*1370 mm Net ağırlığı: 450kg, 500kg

H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 0
H5310L Hydraulic Paper Cutting Machine
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 1H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 2
Features
Key feature of this machine:Variable frequency hydraulic technology.
*Precise cutting with accurate blade descent,resolving the issue of inconsistent cutting depth and enhancing the lifespan of the blade and cutting bar.
*380V to 220V variable frequency hydraulic system,providing twice the power of traditional machines and improved stability.
*No need to replace centrifugal switches and capacitors,providing easier after-sales maintenance.
Technical Parameters
Model H5310L H6810L
Max. Cutting Size
530 * 530 mm
 680 * 680 mm
Max. Cutting Thickness
100 mm
Min. Cutting Size
30 mm
Cutting Accuracy
± 0.2 mm
Ball Table
√
Press Way
Hydraulic + Pedal
Cutting Way
Hydraulic
Display
10.2" Touch Screen
Program
100 Groups * 96 Cuts
Arithmetic
√
Push Motor
Step Motor
Frequency Conversion Motor
√
Power
220V (110V) ± 10%
50Hz (60Hz)
3200 W
Machine Size
1440 * 960 * 1195 mm
 1440 * 1100 * 1370 mm
Net Weight
About 450 kg
 About 500 kg
Configuration
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 3

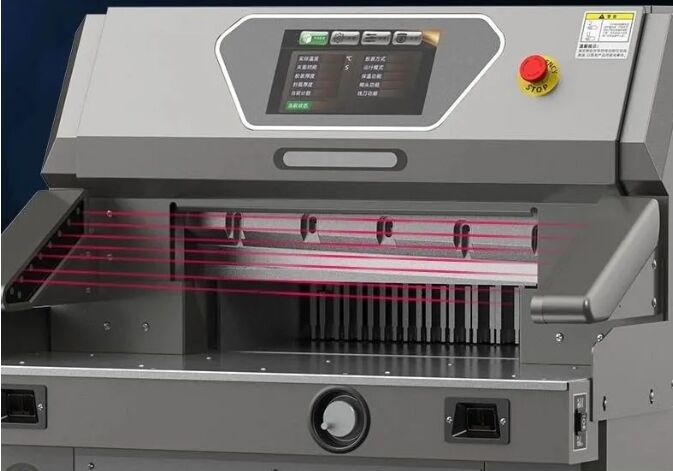

Infrared safety protection design.

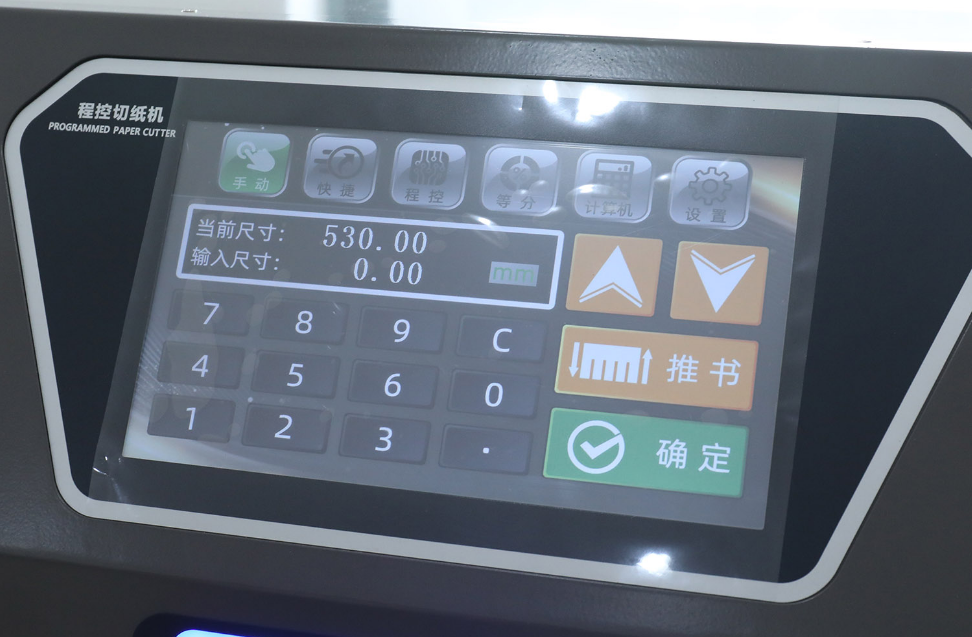

Man-machine interface design,100 groups * 96 cuts program.
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 4

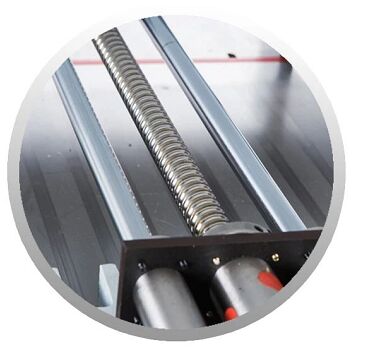

Back platform without groove design, overhanging ball screw push paper more stable.
Patent for oblique cutting paper,cutting more easliy,suitable for thick paper cutting.
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 5
Mechanical foot,cut riding nail book pre-alignment more convenient,higher precision.

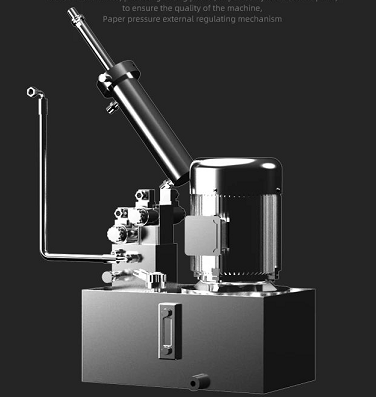

Dual hydraulic power control system with externally adjustable paper pressure mechanism.
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 6
8mm thick aviation aluminum belt ball operating table.
High-speed hydraulic system with rapid blade descent and high efficiency.
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 7
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 8
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 9
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 10
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 11
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 12
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 13
