PRY-460 Computerized Double Corner Cutting Machine with Motor & Engine Core High-Speed Paper Cutting

PRY-460 Computerized Double Corner Cutting Machine with Motor & Engine Core High-Speed Paper Cutting
PRY-460 Computerized Double Corner Cutting Machine with Motor & Engine Core High-Speed Paper Cutting PRY-460 Computerized Double Corner Cutting Machine with Motor & Engine Core High-Speed Paper Cutting PRY-460 Computerized Double Corner Cutting Machine with Motor & Engine Core High-Speed Paper Cutting PRY-460 Computerized Double Corner Cutting Machine with Motor & Engine Core High-Speed Paper Cutting PRY-460 Computerized Double Corner Cutting Machine with Motor & Engine Core High-Speed Paper Cutting
Temel bilgi
Menşe yeri: Çin
Marka adı: PRINTYOUNG
Sertifika: CE
Model numarası: PRY-460
Min sipariş miktarı: 1 Takım
Fiyat: USD 6000 Set
Ambalaj bilgileri: İçinde su geçirmez seviye film ambalajı, dışında standart ihracat ahşap.
Teslim süresi: 30 İŞ GÜNÜ
Ödeme koşulları: L/C, T/T
Yetenek temini: Ayda 30 takım
Şimdi başvurun
Çalışma Hızı: 15 ~ 30 kez/dak Maks. Kitap Genişliği: 460 mm
Min. Kitap Genişliği: 130 mm <i>Max.</i> <b>Maks.</b> <i>cutting height</i> <b>kesme yüksekliği</b>: 80mm
kesici boyutu: R3 ~ R10 Makine ağırlığı: 300 kg
Boyut: (1100 + 1500) * 730 * 1430 mm Güç: 220V / 50Hz / 2,5kw

PRY-460 Computerized Double Corner Cutting Machine with Motor & Engine Core High-Speed Paper Cutting 0

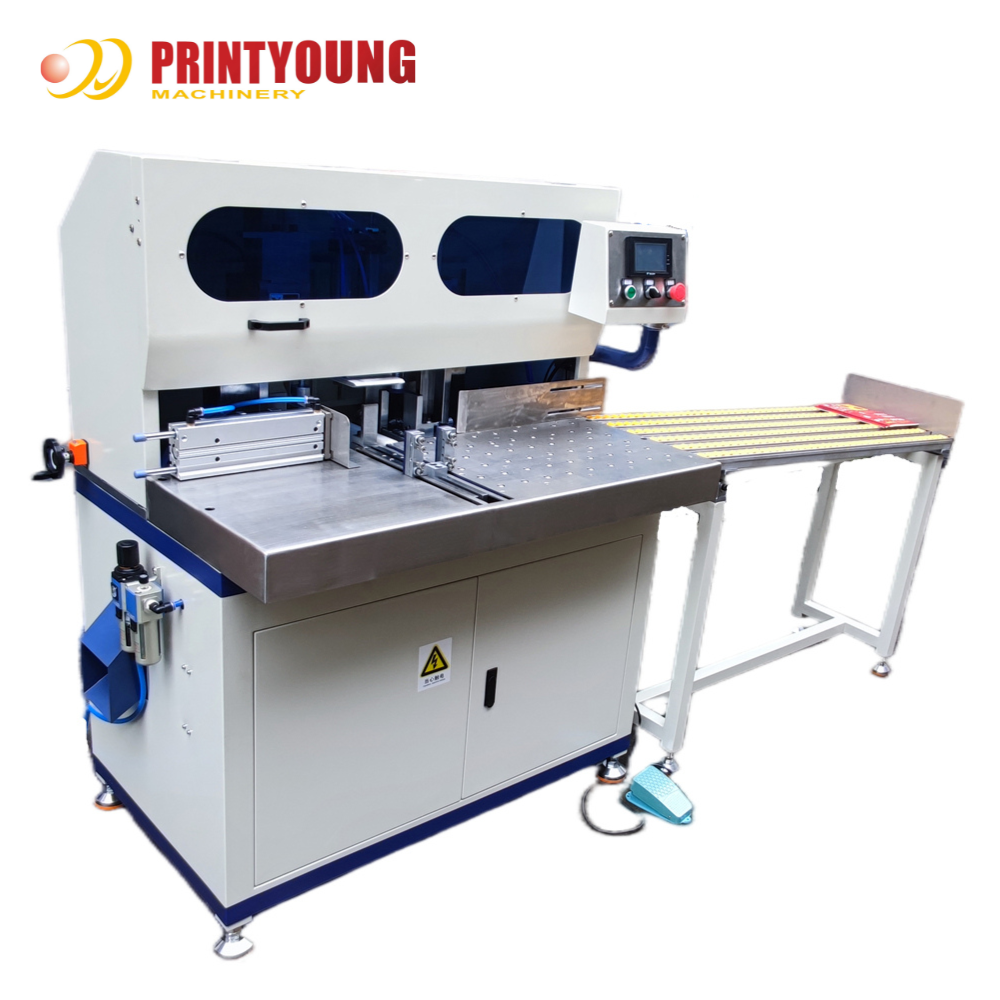

PRY-460 Intelligent Double Corner Cutting Machine
PRY-460 Computerized Double Corner Cutting Machine with Motor & Engine Core High-Speed Paper Cutting 1
Features

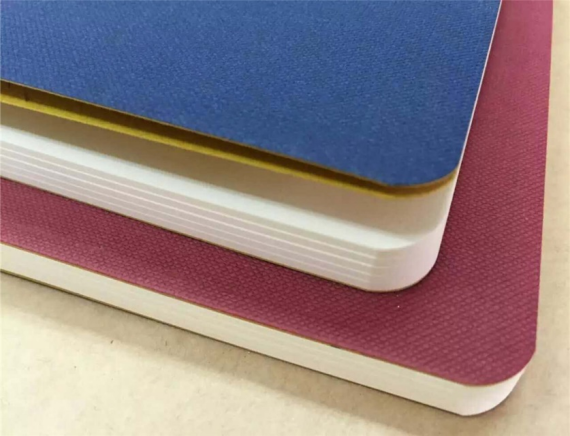

* The machine is used for book,invatation card and so on.
* The worker can work on a desk,it is more intelligent than other machines.
* The worker just need to put the book on the waiting position,then the machine will push the book to the cutting position,then the press part will press the book to make sure the book looks more smooth,after cutting,the book will be push out automatically to the deliver belt,which will improve the efficiency of the cutting process.
* The beautifully outlooks.
* Easy to change cutter.
Working Process
1.Feed the book by manual.
2.Push the book automatically.
3.Push the book from right side to make sure all four side has been push tightly,then the cutter will go down to cut.
4.After cutting and push part will also go back to origin position,then the lef push part will push.
The Advantage of the Machine
1.This machine can push the book automatically,cutting the corner automatically,push the finished book away automatically,which will improve the efficiency twice than normal cutting machine.
2.This machine is control by PLC,touch screen,can cut the round corner very well,easy to change the cutter.
3.This machine use the special high accuracy cutter,which use the technology of chromium steel for bottom cutter,it will not have the situation of bottom paper can not cut well.
Technical Parameters
Model
PRY-460
Working Speed
15 ~ 30 times/min
Max. Book Width
460 mm
Min. Book Width
130 mm
Max. Cutting Height
80 mm
Cutter Size
R3 ~ R10
Machine Weight
300 kg
Dimension
(1100 + 1500) * 730 * 1430 mm
Power
220V / 50Hz / 2.5kw
Configuration
PRY-460 Computerized Double Corner Cutting Machine with Motor & Engine Core High-Speed Paper Cutting 2

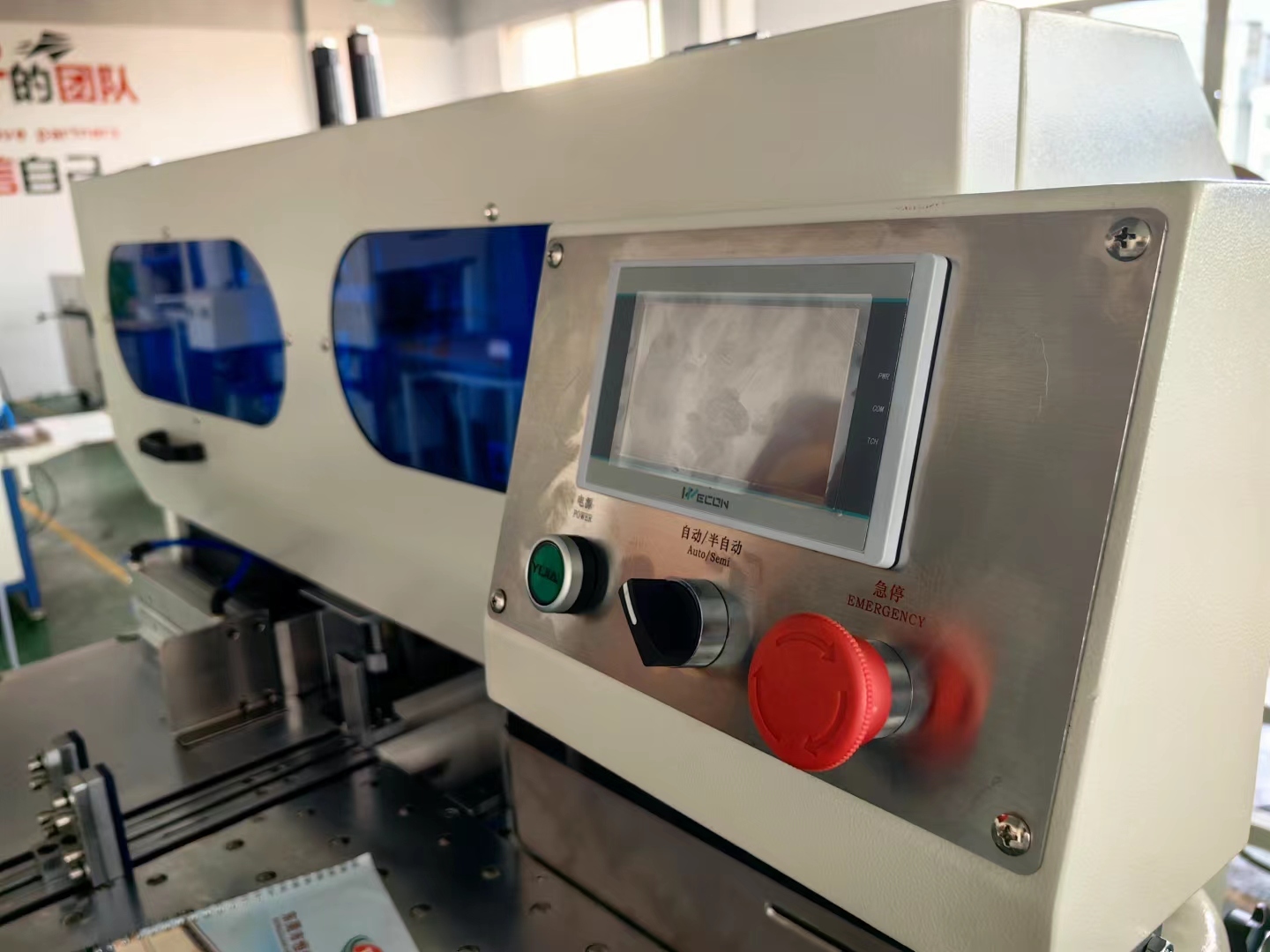

PLC control the machine.

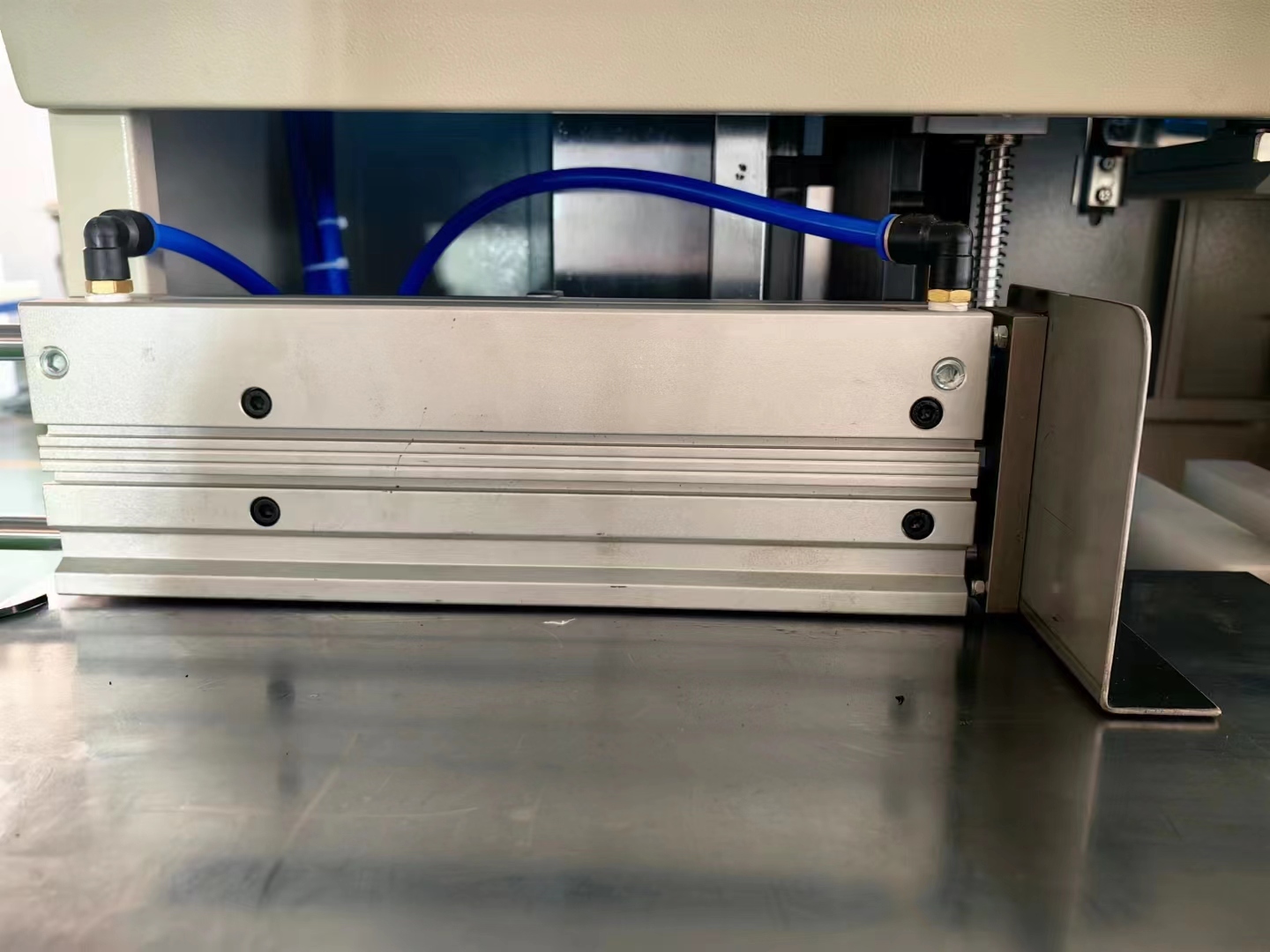

Push part to push the book well instead of manual worker,which improve the efficiency of the cutting process.
PRY-460 Computerized Double Corner Cutting Machine with Motor & Engine Core High-Speed Paper Cutting 3PRY-460 Computerized Double Corner Cutting Machine with Motor & Engine Core High-Speed Paper Cutting 4

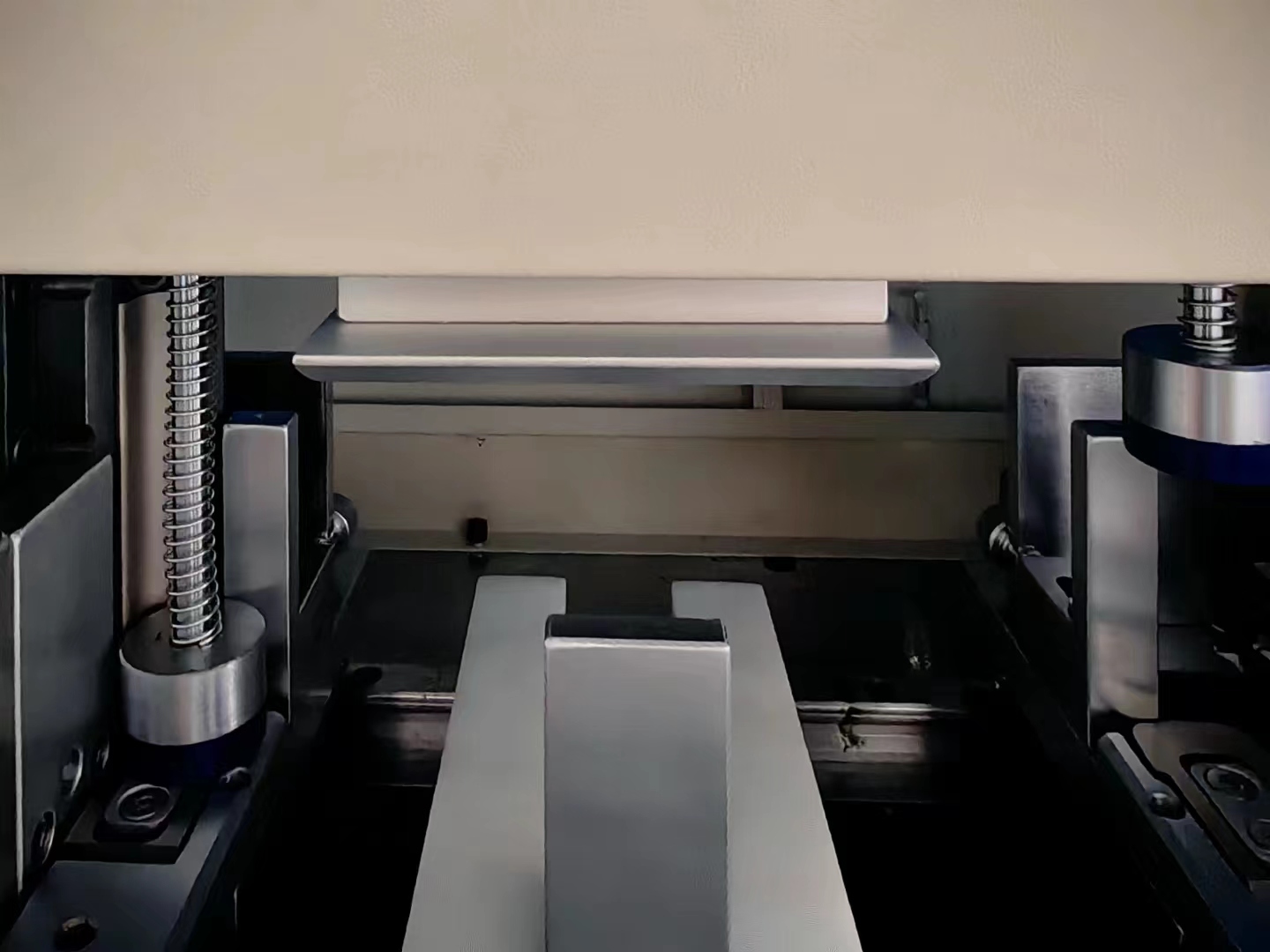

Press part,when the book arrive the cutting position,this part will press the book to make sure the book more smooth.
Side pusher,after cutting,this part will push the finished book to deliver belt.
PRY-460 Computerized Double Corner Cutting Machine with Motor & Engine Core High-Speed Paper Cutting 5
PRY-460 Computerized Double Corner Cutting Machine with Motor & Engine Core High-Speed Paper Cutting 6
PRY-460 Computerized Double Corner Cutting Machine with Motor & Engine Core High-Speed Paper Cutting 7
PRY-460 Computerized Double Corner Cutting Machine with Motor & Engine Core High-Speed Paper Cutting 8
PRY-460 Computerized Double Corner Cutting Machine with Motor & Engine Core High-Speed Paper Cutting 9
PRY-460 Computerized Double Corner Cutting Machine with Motor & Engine Core High-Speed Paper Cutting 10
PRY-460 Computerized Double Corner Cutting Machine with Motor & Engine Core High-Speed Paper Cutting 11
