Name: PRY-S90 Automatic Ultrasonic and PLC Control Paper Cup Forming Machine High-Speed 380V 1 Year Warranty
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: PRY-S90
Price: 15000 USD
Availability: InStock

PRY-S90 Automatic Ultrasonic and PLC Control Paper Cup Forming Machine High-Speed 380V 1 Year Warranty

Temel bilgi

Menşe yeri:	Çin
Marka adı:	PRINTYOUNG
Sertifika:	CE
Model numarası:	PRY-S90

Min sipariş miktarı:	1 takım
Fiyat:	USD 15000 Set
Ambalaj bilgileri:	Uzun mesafe karayolu taşımacılığına ve çeşitli hava koşullarına uygun, neme ve darbeye dayanıklı amb
Teslim süresi:	30 iş günü
Ödeme koşulları:	L/C, T/T
Yetenek temini:	Ayda 30 takım

Şimdi başvurun

Bardak Özellikleri:

3 ~ 9 oz

Kağıt Bardak Üst Çapı:

40 ~ 80 mm

Kağıt Bardak alt çapı:

30 ~ 56 mm

Kağıt bardak yüksekliği:

40 ~ 95 mm

Kağıt Spesifikasyonu:

Tek/Çift PE kağıt

Ağırlık Gram Ağırlığı:

150 ~ 320 gr

Hava Kaynağı Spesifikasyonu:

0,6 ~ 0,8 MPa, 0,4 m³/dak

Ağırlık:

2800 kg

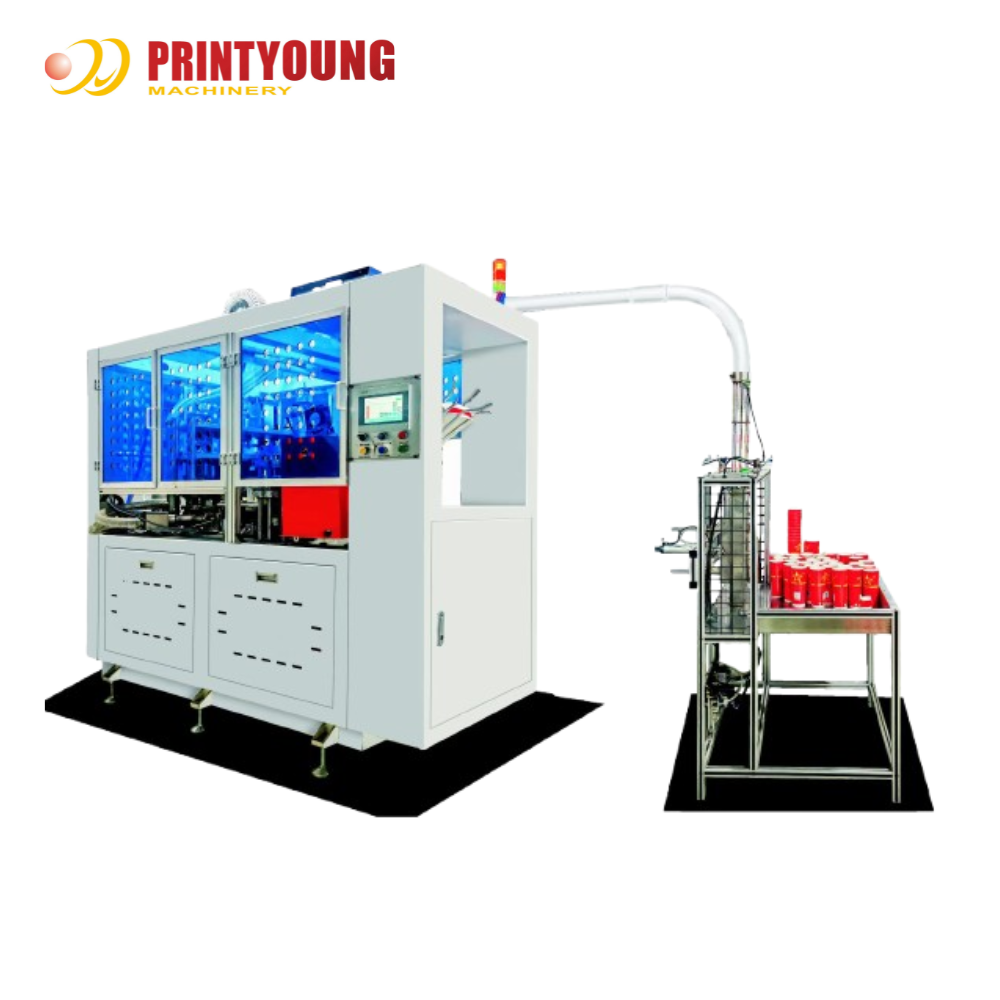

PRY-S90 Paper Cup Forming Machine

Features

The fast paper cup machine is designed and manufactured based on the traditional cam transmission operation model (mechanized transmission gear structure).In the paper cup and bowl equipment industry for many years,its stability,speed,accuracy and quality have been recognized by the market and customers.The integrated control of paper suction,cup turning,cup lifting and other processes operates smoothly,and has the advantages of quickly identifying and solving faults.

1.PLC touch screen control system makes the entire machine operation simplely and smoothly,while multi-station light and shadow alarms ensure equipment protection more intelligent,with simpler worker operation.

2.The transmission components,including camshaft and gears,are all made from 20CrMnti material through complex process such as rough machining,quenching,and precision grinding manufacturing;thereby extending the maintenance-free period and ensuring greater stability of the equipment.
3.The suction paper unit can be optionally configured with upper and lower suction modes or a rotating suction paper mode.Additionally,automatic paper feeding and base paper lifting are available as optional accessories downgraded auxiliary function.

Technical Parameters

Model	PRY-S90
Cups Specifications	3 ~ 9 oz
Paper Cup Top Diameter	40 ~ 80 mm
Paper Cup Bottom Diameter	30 ~ 56 mm
Paper Cup Height	40 ~ 95 mm
Paper Specification	single/double PE paper
Gram Weight of Weight	150 ~ 320 g
Capacity	100 ~ 120 pcs/min
Power Supply	380V 50Hz 3Phase
Total Power	13 kw
Air Source Specification	0.6 ~ 0.8 MPa , 0.4 m³/min
Weight	2800 kg
Machine Size	2300 * 1200 * 1800 mm
Collection Table Size	900 * 600 * 1500 mm
