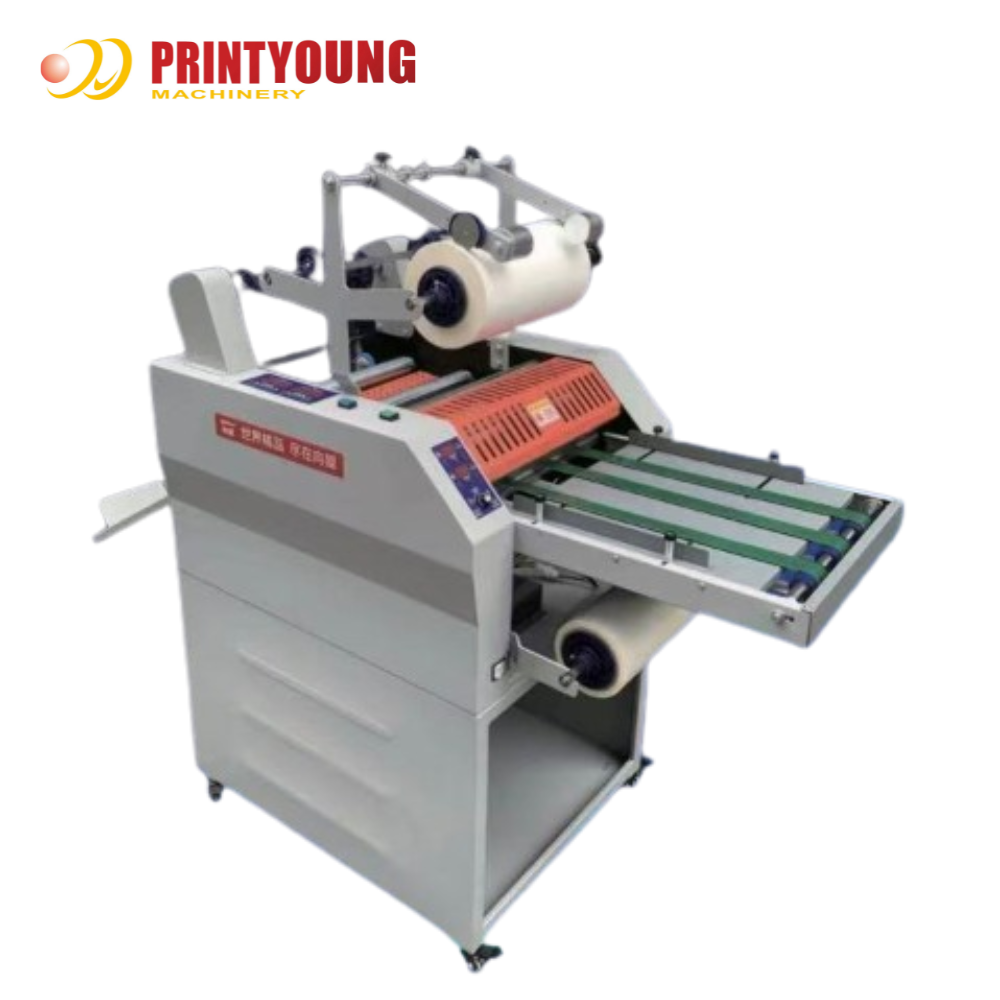

Name: PRY-390D 520D 650D Pneumatic Auto Cut Heated Roll Paper Film Laminator with Onerlap
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: PRY-390D 520D 650D
Price: 1,200.00 USD
Availability: InStock

PRY-390D 520D 650D Pneumatic Auto Cut Heated Roll Paper Film Laminator with Onerlap

Temel bilgi

Menşe yeri:	Çin
Marka adı:	PRINTYOUNG
Sertifika:	CE
Model numarası:	PRY-390D 520D 650D

Min sipariş miktarı:	1 takım
Fiyat:	USD 900 ~ 1500 Sets
Teslim süresi:	30 iş günü
Ödeme koşulları:	L/C, T/T
Yetenek temini:	Ayda 30 Set

Şimdi başvurun

<i>Max.</i> <b>Maks.</b> <i>Laminating Width</i> <b>Laminasyon Genişliği</b>:	370mm 500mm 650mm	Çalışma hızı:	13 Metre/Dakika
Kağıt kalınlığı:	125 ~ 350 g/m2	laminasyon sıcaklığı:	90 ~ 110 derece (normal)
Toplam güç:	2000 w	Üst Isıtma Rulosu:	Çelik rulo (standart)
Alt Isıtma Rulosu:	kauçuk rulo	Kontrol Paneli:	Dijital LED sistemi

PRY-390D Film Laminator

Features

1.Control Panel;

2.Slitting;

3.Perforating;

4.Auto cut & overlap.

Technical Parameters

PRY-390D Film Laminator
Max. Laminating Width	370 mm	500 mm	650 mm
Operating Speed	13 meters/minute
Paper Thickness	125 ~ 350 gsm
Laminating Temperature	90 ~ 110 degree (normal)
Total Power	2000 W
Temperature Control	upper / lower temperature are controlled separately
Upper Heating Roll	steel roll (standard)
Lower Heating Roll	rubber roll
Control Panel	digital LED system
Feeding Mode	manual
Overlap	yes
Auto Bursting	yes
Optional	two sides lamination with auto cut function (can be option in future)
Slitting Function	yes
Anti-curling Function	yes
Conveyor Belt Number	3	4	5
Optional	lower / upper rewinder (must appoint when order)
Machine Size	150 * 60 * 126 cm	150 * 73 * 126 cm	150 * 88 * 126 cm
Option	compressor
