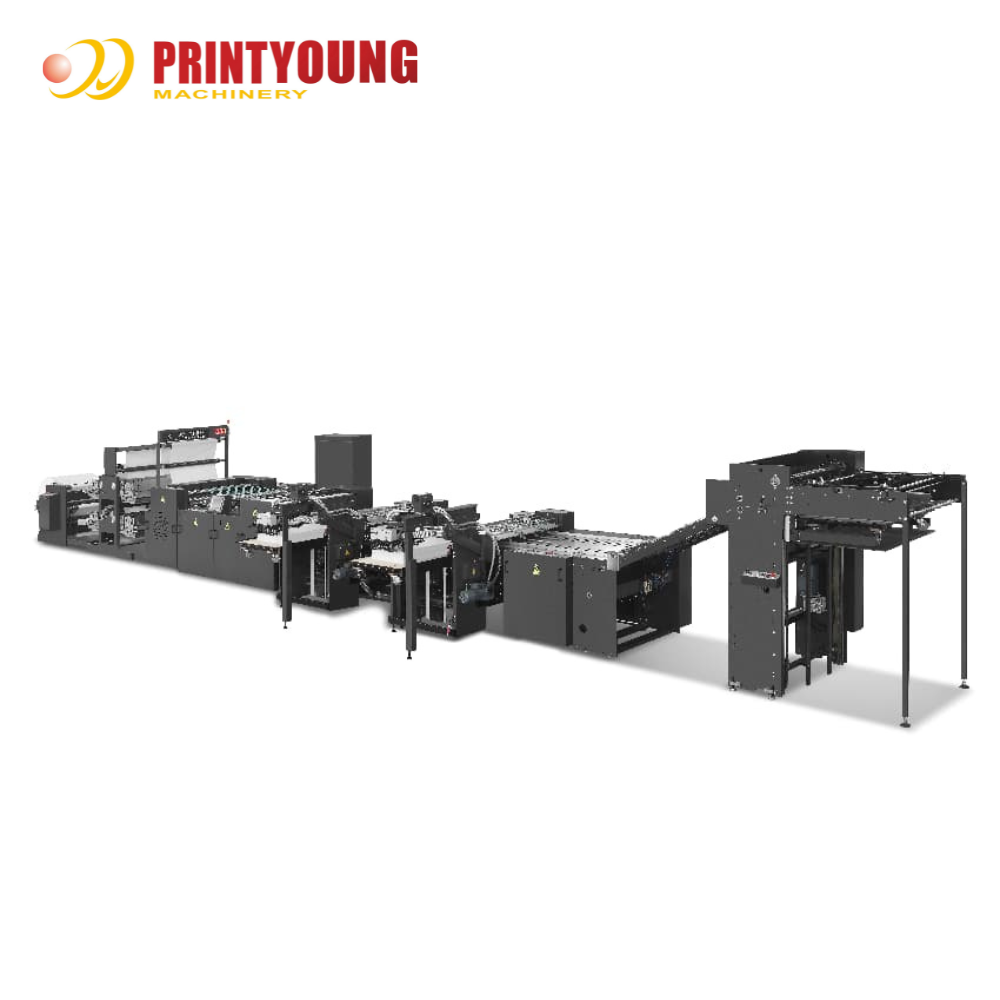

Name: PRY-1020AFG Automatic Double Feeder 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: PRY-1020AFG
Price: 100000 USD
Availability: InStock

PRY-1020AFG Automatic Double Feeder 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed

Temel bilgi

Menşe yeri:	Çin
Marka adı:	PRINTYOUNG
Sertifika:	CE
Model numarası:	PRY-1020AFG

Min sipariş miktarı:	1 Takım
Fiyat:	USD 100000 Set
Ambalaj bilgileri:	Uzun mesafe karayolu taşımacılığına ve çeşitli hava koşullarına uygun, neme ve darbeye dayanıklı amb
Teslim süresi:	30 İŞ GÜNÜ
Ödeme koşulları:	L/C, T/T
Yetenek temini:	Ayda 30 takım

Şimdi başvurun

Rulonun Maksimum Çapı:

1300 mm

Kağıdın Genişliği:

680 ~ 1020mm

Geçerli Kağıt Ağırlığı:

50 ~ 130 gr/m²

Tekrar Baskı Uzunluğu:

300 ~ 680mm

Maksimum Baskı Genişliği:

1020 mm

En yüksek baskı hızı:

300 m/dak

Verilecek Maksimum Kopya Sayısı:

Dakikada 55 kopya

Dilme Özellikleri:

300 ~ 680mm

Katmanlı Sayfalar:

5 ~ 50 sayfa

Kapak Kağıdı Ağırlığı:

60 ~ 300 gr

Vurgulamak:

Automatic double feeder flexo printing machine

High speed 2-color in-line flexo printer

300 M/min print speed flexo machine

PRY-1020AFG Double Feeder Flexo Printing Machine

Features

1.This machine employs advanced technologies including microcomputer control,

photoelectric tracking,pneumatic-liquid linkage,touchscreen human-machine interface operation,and ink-based flexographic printing.The production line features a roller paper unwinding and flattening process,double-sided dual-color flexible printing,horizontal sheet cutting,multi-page layering,vertical cutting,and platform-based paper stacking,making it an ideal mechanical solution for coil-based printing of inner core pages.

2.This operation can be performed by a single captain.
3.constituent
One set of unwinding sleeves
Double-sided two-color printing
A set of cutting sleeves
A set of paper sets (digital program control)
Two sets of suction and delivery Feeders
A set of high-income part sets
A set of electrical control system

Technical Parameters

The Maximum Diameter of the Roll	1300 mm
The Width of the Paper	680 ~ 1020 mm
Applicable Paper Weight	50 ~ 130 g/m²
Repeat Print Length	300 ~ 680 mm
Maximum Printing Width	1020 mm
Maximum Printing Speed	300 m/min
The Maximum Number of Copies to be Issued	55 copies per minute
Slitting Specifications	300 ~ 680 mm
Layered Pages	5 ~ 50 pages
Cover Paper Weight	60 ~ 300 g

Configuration

Unwinding Part

1.Quantity of roll paper: 1pc
2.Paper roll diameter: 1300mm
3.Paper roll width: 1020mm
4.Web lifting: The motor chain lifting method is adopted
5.Tension braking: Magnetic particle braking system is adopted
6.Web clamping method: Adopt air shaft type
7.Tension control system: Fully automatic,floating roller type

Printed Parts

1.Number of process color groups,4 printing color sets,cast iron wall panels,timing belt drive.
2.Manner,single-paper,double-sided,two-colored
3.Printing format: Maximum circumference: 680mm
4.Maximum width: 1020mm

5.Printing speed: Maximum printing speed: 300m/min

Cut the Part

1.Slitting knife shaft 1 set Bed knife: Holder mounting Upper knife: Rotating knife roller + knife blade

2.Traction unit 1 set The traction rollers are steel rollers

The pressure roller is a rubber roller

The traction rollers are clamped with cylinders

3.Slitting accuracy Cutting length tolerances +/-1mm<1000mm Slope tolerance +/-1mm/1000mm

4.Main motor
The main motor is a 15kw AC motor installed in the slitting component

Page Count

1.Count
Count range: 10-100 pages (5-50 sheets fold)
2.Clamp delivery
2 sets of clamping units
Clamp feeding drive utilizes cam curve mechanical drive
Clamping control utilizes cam curve mechanical control
3.Transportation method
First, use a flat belt for continuous conveying,and then use a synchronous belt for intermittent conveying
